ADS-127 Fiber Optic Polishing Film Diamon Polishing Lapping NTTAT 0.5um Grinding Paper
The fiber optic polishing film also call fiber optic grinding Kocent Optec Limited can supply the China fiber optic polishing film with low cost and also can supply Japan fiber optic polishing film with high quality.
Descriptions:
- The fiber optic polish film is the finally necessary item in fiber optic jumper wire grinding procedure.
- It can minimizethe scratch, there won't be binding left on fiber surface after polished, and long service life, effectively save jumper cost.
- The fiber optic polishing film is coated with precisely graded minerals (such as diamond, aluminum oxide, silicon carbide, silicon oxide, cerium oxide and so on) on the high strength polyester backing to provide a uniform, consistent finish.
- Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing.
- Fiber optic connector polishing
- Designed for high volume manufacturing
- Quick change tooling
- APC back reflection as low as -70 dB
- UPC back reflection as low as -60 dB
- Insertion loss 0.2 dB typical
- Super centering accuracy
- Low undercut
- Excellent connector endface polishing quality
Features:
- Perfect grinding efficiency for surface’s high-resolution with different precision demand
- Consistent finishing performance
- High durability and cost reduction
- Available for dry polishing and wet polishing
- Full stainess steel polishing plate, more reliable and stable
- Double motors with sufficient power
- High accuraty Machinary size, minimal plane tolerance
- Rotation speed and time adjustable with simple operation
- Excellent stability, five or ten years lifetime

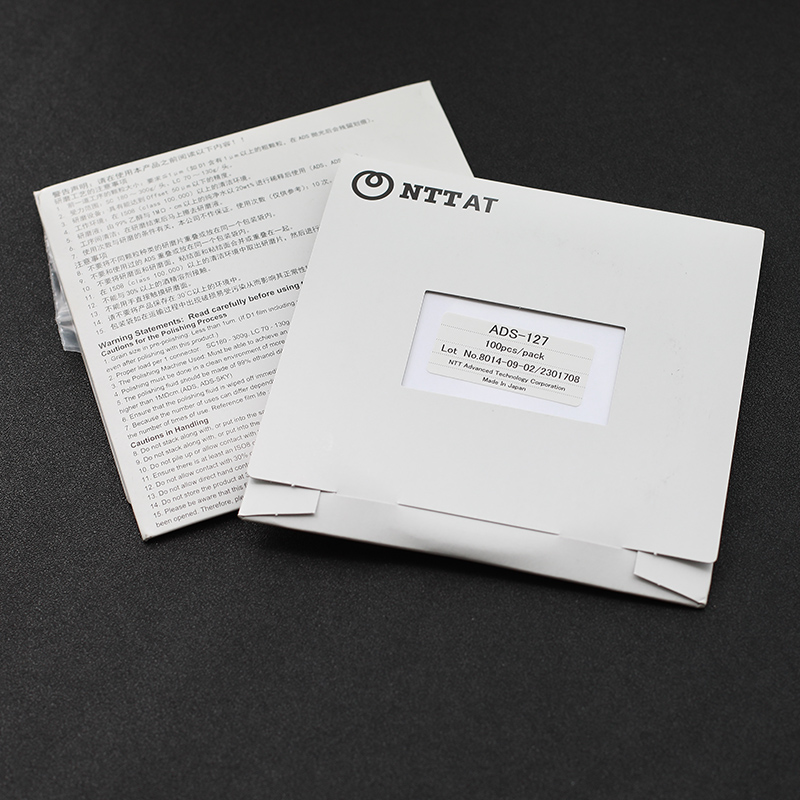

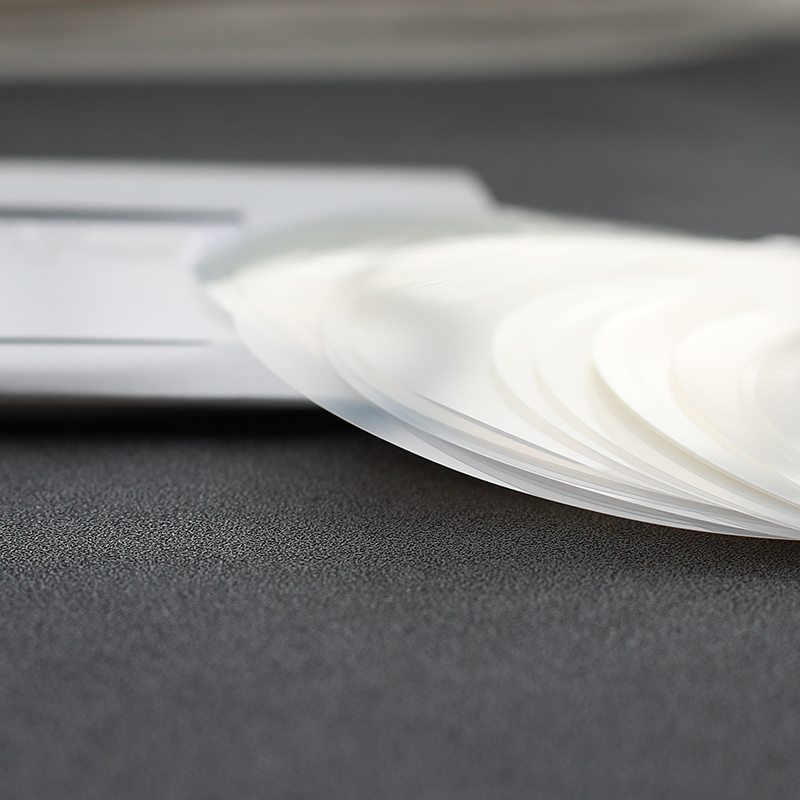

Product pictures:
Applications:
| Product Type | Application |
| D | · Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing) ·Polishing for magnetic heads and hard disks ·Lapping and polishing for optical glasses, optical crystal , LED ·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) ·Edge polishing for silicon wafer |
| SC | ·Epoxy and glass removal ·Lapping and polishing for plastic ferrules ·Fine finishing and polishing for magnetic heads |
| AO | ·Polishing for fiber optical connectors ·Polishing for silicon wafer used in Solar cells ·Polishing for hard disks ·Polishing for ITO ·Lapping and polishing for optical crystal |
| CO | ·The final polishing for fiber optical connectors ·Polishing for optical devices |
| SO | ·The final super-precise polishing of optical fiber connector |
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) |
| Grit Size/um | 30 | Green | Light Green | Green | | |
| 20 | | | | White | | |
| 16 | | | | White | | |
| 15 | Yellow-Green | Tawny | Light Green | Brown | | |
| 12 | | | | Yellow | | |
| 9 | Blue | Orange | Gray-green | Blue | | |
| 6 | Yellow | | | | |
| 5 | | | Gray-green | White | | |
| 3 | Pink | Tan | Pink & White | | |
| 2 | | | Gray-green | Bright Green | | |
| 1 | off-white | Lavender | Gray-green | Blue | | |
| 0.5 | off-white | Brown-yellow | | White | White | |
| 0.3 | | | | White | Dark Red | |
| 0.2 | Grey | | | | |
| 0.1 | Light Brown | | White | | |
| 0.02 | | | | | | Transparent |
| 0.01 | | | | | | Transparent |
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water |
| Standard Size | Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) |
| Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch) |
| Note: Other film sizes are available upon request. |
Fiber Optic Patch Cord Production Process:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
