G657B3 SC APC Fiber Optic Pigtail Cables Black Color PE Sheath 3.5mm 5.0mm

Brand Name : KCO

Model Number : SC/APC Pigtail-SM-SX-G657B3-LSZH-Black-3.5mm-xM

Certification : ISO9001, RoHS

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Delivery Time : 2~5 days after get payment

Packaging Details : PE bag, carton box, wooden roll

Connector 1 : SC/APC

Connector 2 : SC/APC, SC, ST, ect

Core : duplex, simplex, fan-out, break out

Cover : PVC, LSZH, armored, customized

Insertion loss : 0.2dB

Return Loss : 55dB

Contact Now

G657B3 SC APC Fiber Optic Patch Cable Pigtail Black Color PE Sheath 3.5mm 5.0mm

Product Description

1. The material of Ceramic Ferrule: Zirconium quality stable and easy for polishing
2. Good supply capacity(20K-30K pieces connectors each day)
3. Fast delivery time(5-7days)
4. Complied to ISO9001 quality system
5. 100% testing before shipment
6. 3D passed testing with report for option
7. All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA905 and so on)

Application

1) FTTH, LAN, PON & Optical CATV, Local ring net
2) Optical fiber communication system
3) Optical fiber test equipment
4)Optical fiber sensor
5) Industry and military application

Outdoor Exterior Fiber optic patch cable Descriptions:
- Outdoor Exterior fiber optic patch cables, inside 1.9mm inner white LSZH sheath, outer jacket is PE Material. It can be used indoor and outdoor.
- Outer black 3.5mm jacket can be stripped more easily if customer need use inside 1.9mm cable to connector with patch panels, terminal box and make splicing installation.
- Use G657B3 fiber.
- For this type pigtail or patch cable length always 20M, 30M, 40M, 60M, 80M, 100M, 120M, 2KM to use for long distance connecting.

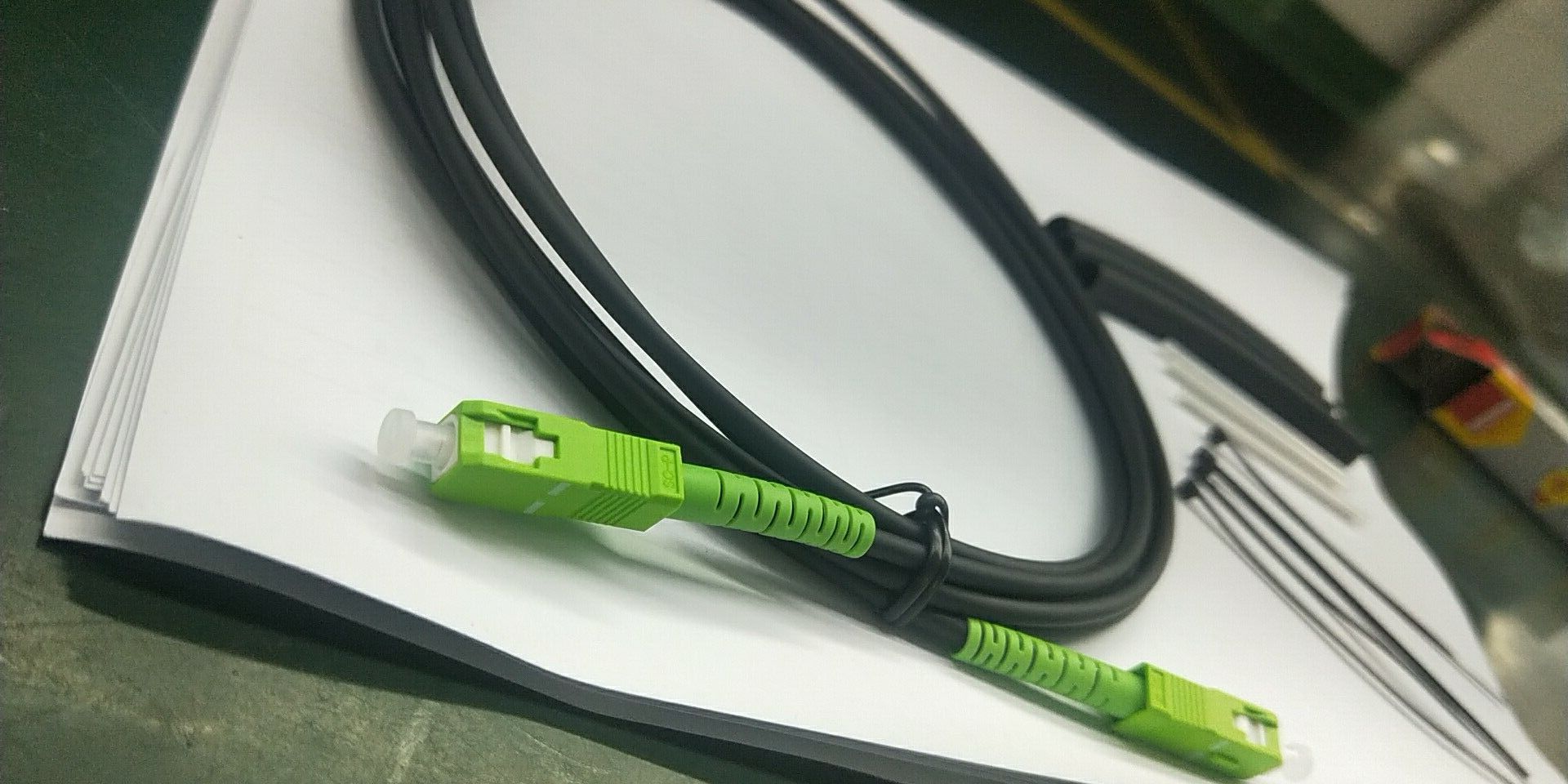

Fiber optic patch cable Product pictures:
G657B3 SC APC Fiber Optic Pigtail Cables Black Color PE Sheath 3.5mm 5.0mm

Technical:

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.2dB
Return Loss	≥50dB	≥60dB	≥35dB
Test Wavelength	1310/1550nm		850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-20℃~+70℃
Storage Temperature	-40℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

Fiber optic patch cable Specifications:

Type	Standard,Master
Connector Style	LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, ... Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Single mode) OS1 50/125, 62.5/125 (Multimode) OM2&OM1  50/125 10G (Multimode) OM3 G652 (all type), G657(all type), G655(all type)
Cable Type	Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm  Φ0.9mm buffered fiber
Cable Cover material	PVC LSZH Armored Water-proof FTTH Outdoor
Return Loss (For Single mode)	≤ 0.15dB (For Single mode Master) ≤ 0.30dB (For Single mode Standard)  ≤ 0.30dB (For Multi mode)  Tested by JDS RM 3750
Return Loss (For Single mode)	UPC ≥ 50dB  SPC ≥ 55dB  APC ≥ 60dB (typ.65dB)  Tested by JDS RM3750
Repeatability	±0.1dB
Operating Temperature	-40°C to 85°C

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
G657B3 SC APC Fiber Optic Pigtail Cables Black Color PE Sheath 3.5mm 5.0mm

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
