100G 200G 8CH Mux Demux DWDM ABS Box Module 0.9mm LC/UPC Connector
Descriptions:
- Wavelength-division multiplexing (WDM) technology combines multiple wavelengths into a single optical fiber. This technique enables better fiber utilization, as it increases fiber capacity by a factor of 16-96 and enables building effective optical networks.
- DWDM C-band spectrum supports up to 96 wavelengths, spaced at the standard ITU grid of 50GHz, 64 wavelengths, spaced at the standard ITU grid of 75GHz, and 48 wavelengths, spaced at the standard ITU grid of 100GHz. DWDM also supports flex-grid in which flexible bandwidth spectrum slices are allocated to the optical signals.

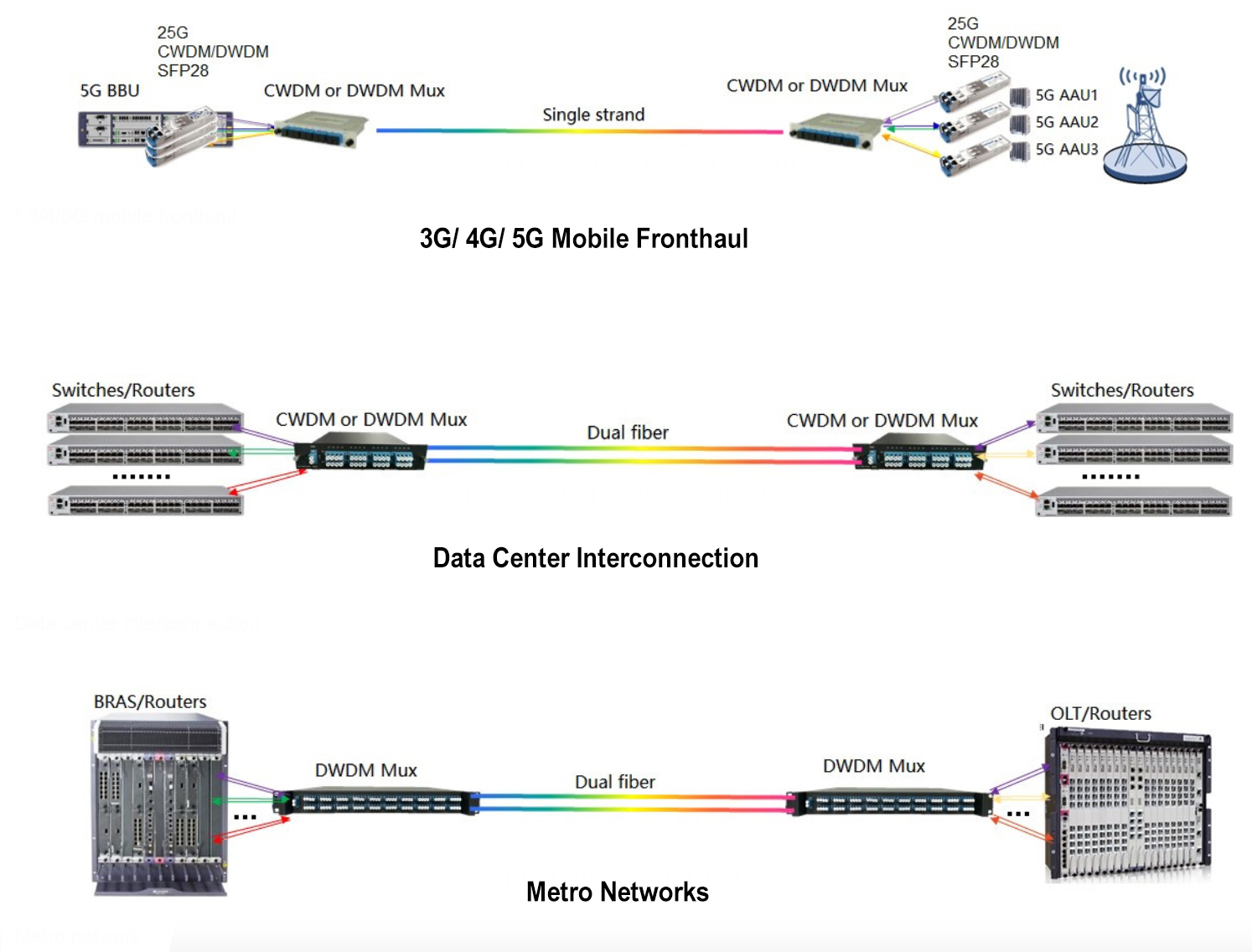

- The DWDM dense division multiplexing architecture enables the fitting of multiple wavelengths on a single fiber and supports long haul, metro and DCI applications with capacities of 10G/100G/200G/400G per wavelength.
Product advantage:
- One of the biggest advantages of DWDM is the use of optical amplifiers, which can amplify the entire DWDM spectrum and overcome long spans of attenuation and fiber loss, enabling cost-effective transmission over long distance.
- The optical amplifiers are managed and configured as part of the optical network and have adjustable gain and operation modes.
- There are several types of amplifiers which are used according to the link design such as booster/inline/mid-stage/pre-amp EDFA, and Raman. When boosted by Erbium-doped-fiber amplifiers (EDFAs), the DWDM systems can support ultra-long haul applications of thousands of kilometers without the need for regenerators.
- DWDM pluggable optical transceivers support wavelength tunability, which reduces the part numbers needed and enables faster delivery time while also reducing spare parts.
- The 10G/100G/200G/400G transceivers connect to the front panel and easily increase capacity for pay-as-you-grow network architecture.
Key Features
- 100GHz ITU Channel Spacing (100GHz ITU)
- Low insertion loss
- Broadband transmission
- High channel isolation
- High stability and reliability
- Epoxy-free optical path
Applications
- DWDM System
- CATV networks
- PON Systems
- FTTx Systems
| | | | | | |
| | DWDM C-band λc Wavelength Guide
| |
| | ITU Channel Code | Wavelength | ITU ChannelCode | Wavelength | |
| | 21 | 1560.61 | 41 | 1544.53 | |
| | 22 | 1559.79 | 42 | 1543.73 | |
| | 23 | 1558.98 | 43 | 1542.94 | |
| | 24 | 1558.17 | 44 | 1542.14 | |
| | 25 | 1557.36 | 45 | 1541.35 | |
| | 26 | 1556.55 | 46 | 1540.56 | |
| | 27 | 1555.75 | 47 | 1539.77 | |
| | 28 | 1554.94 | 48 | 1538.98 | |
| | 29 | 1554.13 | 49 | 1538.19 | |
| | 30 | 1553.33 | 50 | 1537.4 | |
| | 31 | 1552.52 | 51 | 1536.61 | |
| | 32 | 1551.72 | 52 | 1535.82 | |
| | 33 | 1550.92 | 53 | 1535.04 | |
| | 34 | 1550.12 | 54 | 1534.25 | |
| | 35 | 1549.32 | 55 | 1533.47 | |
| | 36 | 1548.51 | 56 | 1532.68 | |
| | 37 | 1547.72 | 57 | 1531.9 | |
| | 38 | 1546.92 | 58 | 1531.12 | |
| | 39 | 1546.12 | 59 | 1530.33 | |
| | 40 | 1545.32 | 60 | 1529.55 | |
| | | | | | |

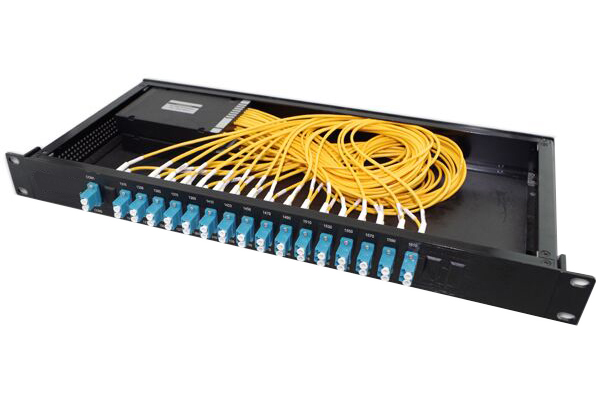

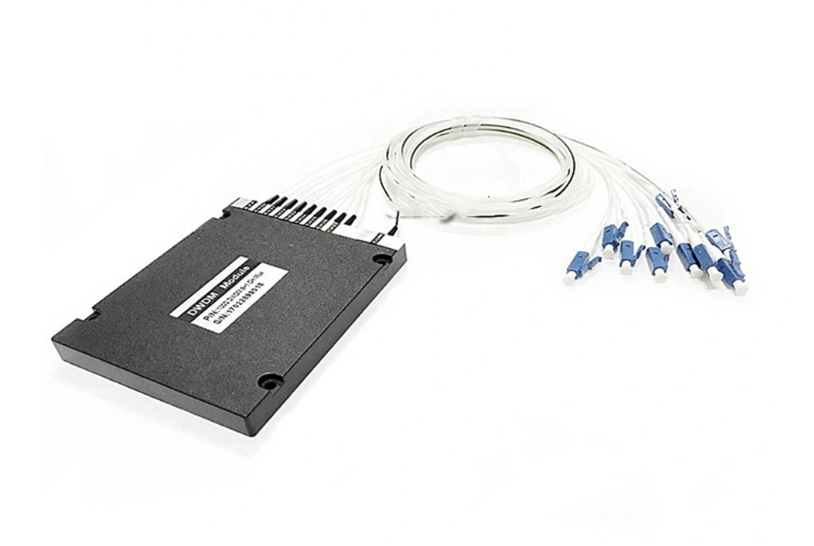

Product photo:

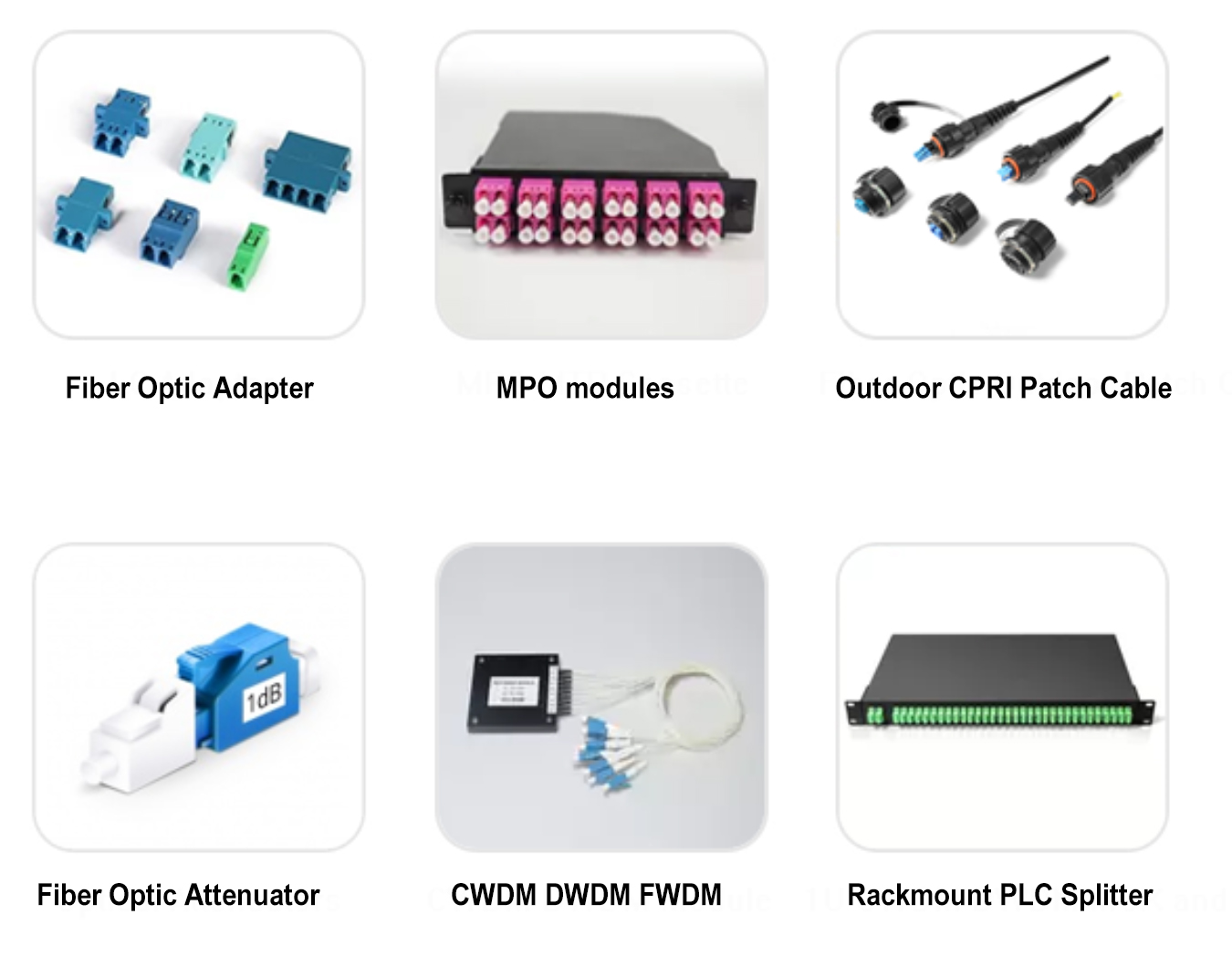

Relation products:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
