12 Core Micro Air Blown Fiber Optical Cable GCYFTY Indoor Outdoor Single mode G657A
Description
Large core number air blowing cable GCYFTY cable structure is the phi 250 um optical fibers are jacketed high modulus material made of loose tube, the loose casing pipe is filled with waterproof compound, loose tube around the center of the strengthen core twist synthetic compact round cable core, the cable core gap mid to moisture-proof waterproof yarn, then extruding PE sheathed cable.
Feature
- Small outside diameter, light weight, easy to lay.
- Adopt semi dry structure, construction is clean and tidy.
- Loose tube material itself has a good water resistance and high strength.
- Special tube filling compound ensure a critical protection of fiber.
- Adopt the following measures to ensure the waterproof performance of the optical cable.
- Loose tube filled with special waterproof compound.
- Using dry type of water blocking material, the whole section of water resistance, to prevent the optical cable vertical seepage.
Applications
- Using microtubule resources, especially for the backbone network, access network and fiber to the home.
- Cabling costs are low and suitable for upgrading the old city and building network.
Optical Characterics:
| | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | | ≤3.0dB/km | ≤3.0dB/km |
| | @1300nm | | | ≤1.0dB/km | ≤1.0dB/km |
| | @1310nm | ≤0.36dB/km | ≤0.36dB/km | | |
| | @1550nm | ≤0.22dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850 | | | ≥500MHZ·km | ≥500MHZ·km |
| | @1300 | | | ≥1000MHZ·km | ≥600MHZ·km |
| numerical aperture | | | | 0.200±0.015NA | 0.275±0.015NA |
| Optical fiber cut off wavelength | | ≤1260nm | ≤1480nm | |
Parameters
| Cable Type | Fiber Count | Cable Diameter
mm | Cable Weight
Kg/km | Tensile Strength
Long/Short Term
N | Crush Resistance Long/Short Term
N/100m | Bending Radius Static/Dynamic
mm |
| GYFTY | 2-60 | 5 | 20 | 1100/550 | 150/500 | 30D/15D |
| GYFTY | 62-72 | 5.5 | 25 | 1100/550 | 150/500 | 30D/15D |
| GYFTY | 74-96 | 6.7 | 32 | 1700/850 | 150/500 | 30D/15D |

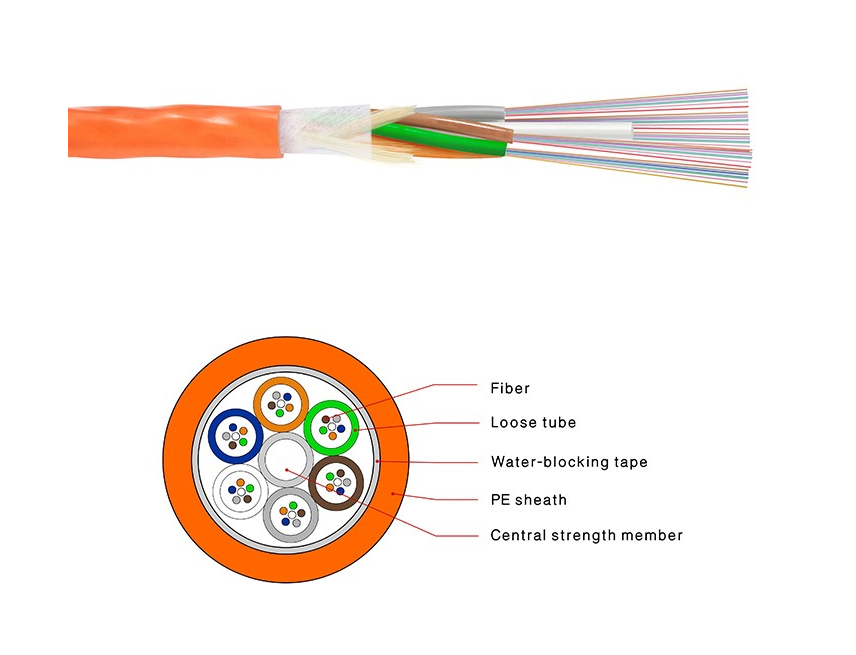

Cable Construction:
Standard:
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical fibers ……………ITU-T G.652D
Optical fibers ……………IEC 60793 B1.3
Cables …………………...IEC 60794
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
